What is high-intensity backlighting in machine vision for packaging lines?

High-intensity backlighting is a technique where a bright LED light source is positioned behind the object being inspected, creating a high-contrast silhouette image. In packaging lines, this allows machine vision cameras to clearly detect defects such as holes, tears, misalignments, and contamination in films, cardboard, and sealing areas — even at very high production speeds.

How does stroboscopic mode help with real-time defect detection on packaging lines?

Stroboscopic (flash) mode allows the LED backlight to emit extremely short, intense bursts of light synchronized with the camera shutter. This effectively freezes fast-moving packaging in the image, eliminating motion blur and enabling sharp, analyzable images at line speeds of hundreds of pieces per minute — without stopping or slowing the production line.

What types of packaging defects can be detected with backlight illumination?

High-intensity backlight illumination enables detection of micro-holes and tears in plastic films or cardboard, closing flap misalignments, contamination or residue in sealing or welding areas, incomplete seals, presence of foreign materials, and dimensional non-conformities. The high-contrast silhouette created by backlighting makes even sub-millimeter defects clearly visible to the vision system.

Why is light stability important for packaging inspection systems?

Light stability ensures that the illumination intensity remains constant throughout the entire production run, without gradual dimming or flickering. If light output varies, the vision system may generate false rejects or miss genuine defects due to inconsistent image brightness. Industrial LED backlights from RODER Vision maintain stable output over time, reducing the need for frequent recalibration and ensuring reliable, near-zero error rate inspection.

Which RODER Vision backlight series are suitable for high-speed packaging inspection?

RODER Vision offers several backlight series designed for demanding industrial applications: the BL3 series for medium and large inspection fields, the BL4 series for high-brightness applications, and the BL5 series for applications requiring maximum light output. All support strobe/trigger synchronization and are available in a wide range of sizes to match different conveyor and packaging line configurations.

What is the advantage of LED backlights over fluorescent or other light sources for packaging lines?

LED backlights offer significant advantages over fluorescent sources: instant on/off switching compatible with strobe synchronization, much longer lifespan (50,000+ hours), consistent color temperature and brightness over time, lower energy consumption, no warm-up time, and compatibility with 24 Vdc industrial power supplies. These characteristics make LED backlights the preferred solution for continuous, 24/7 packaging inspection environments.

How do I select the right backlight size for my packaging inspection application?

The correct backlight size depends on the dimensions of the packaging being inspected, the field of view of the camera, and the working distance between the light, object, and camera. As a general rule, the active illuminated area of the backlight should be at least as large as the maximum object size to be inspected. RODER Vision's technical team can help you define the optimal size and model for your specific line configuration — contact info@roder.it for a free application consultation.

What is high-intensity backlighting in machine vision for packaging lines?

High-intensity backlighting is a technique where a bright LED light source is positioned behind the object being inspected, creating a high-contrast silhouette image. In packaging lines, this allows machine vision cameras to clearly detect defects such as holes, tears, misalignments, and contamination in films, cardboard, and sealing areas — even at very high production speeds.

How does stroboscopic mode help with real-time defect detection on packaging lines?

Stroboscopic (flash) mode allows the LED backlight to emit extremely short, intense bursts of light synchronized with the camera shutter. This effectively freezes fast-moving packaging in the image, eliminating motion blur and enabling sharp, analyzable images at line speeds of hundreds of pieces per minute — without stopping or slowing the production line.

What types of packaging defects can be detected with backlight illumination?

High-intensity backlight illumination enables detection of micro-holes and tears in plastic films or cardboard, closing flap misalignments, contamination or residue in sealing or welding areas, incomplete seals, presence of foreign materials, and dimensional non-conformities. The high-contrast silhouette created by backlighting makes even sub-millimeter defects clearly visible to the vision system.

Why is light stability important for packaging inspection systems?

Light stability ensures that the illumination intensity remains constant throughout the entire production run, without gradual dimming or flickering. If light output varies, the vision system may generate false rejects or miss genuine defects due to inconsistent image brightness. Industrial LED backlights from RODER Vision maintain stable output over time, reducing the need for frequent recalibration and ensuring reliable, near-zero error rate inspection.

Which RODER Vision backlight series are suitable for high-speed packaging inspection?

RODER Vision offers several backlight series for demanding industrial applications: the BL3 series for medium and large inspection fields, the BL4 series for high-brightness applications, and the BL5 series for applications requiring maximum light output. All support strobe/trigger synchronization and are available in a wide range of sizes to match different packaging line configurations.

What is the advantage of LED backlights over fluorescent or other light sources for packaging lines?

LED backlights offer significant advantages over fluorescent sources: instant on/off switching compatible with strobe synchronization, much longer lifespan (50,000+ hours), consistent color temperature and brightness over time, lower energy consumption, no warm-up time, and compatibility with 24 Vdc industrial power supplies. These make LED backlights the preferred solution for continuous, 24/7 packaging inspection environments.

How do I select the right backlight size for my packaging inspection application?

The correct backlight size depends on the dimensions of the packaging being inspected, the field of view of the camera, and the working distance between the light, object, and camera. The active illuminated area should be at least as large as the maximum object size. RODER Vision's technical team can help define the optimal model for your line — contact info@roder.it for a free consultation.

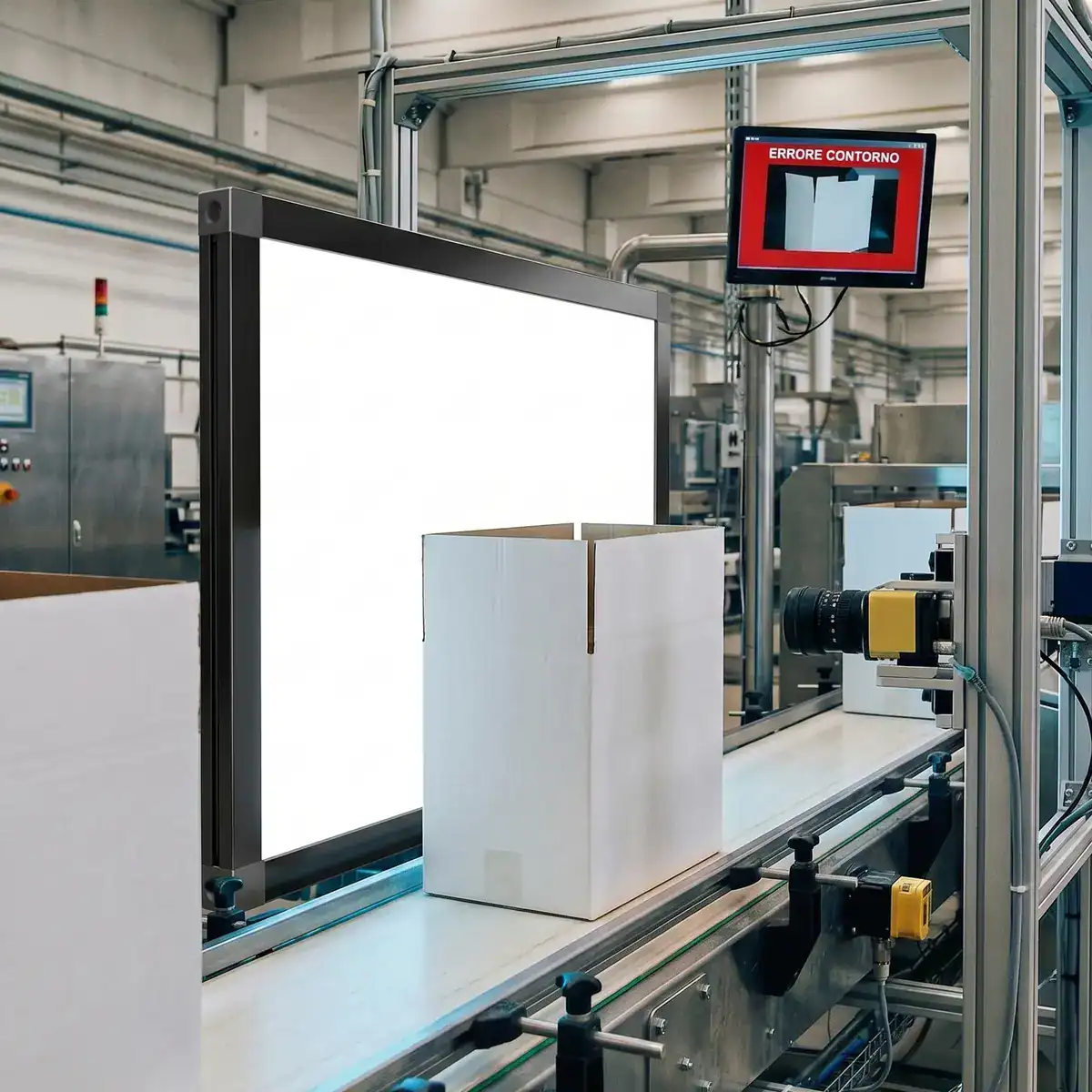

Real-time defect detection on packaging lines with high-intensity backlighting

In high-speed packaging lines, timing is everything. We analyze the importance of high-intensity backlighting to “freeze” motion and detect structural defects in real time. Thanks to strobe LED technology, high productivity can be maintained without sacrificing accurate and flawless inspection of every single piece passing through the line.

In modern packaging lines, where speeds can exceed hundreds of pieces per minute, packaging defect detection requires technologies capable of “freezing” motion without losing detail. High-intensity backlights are key components for enabling real-time inspection without slowing productivity.

Light output and short exposure times

To avoid the “blur” effect in images captured by high-speed cameras, extremely short exposure times are required. Consequently, a huge amount of light is needed to properly expose the sensor. The high-intensity LED backlight provides the necessary power, often operating in “stroboscopic” (flash) mode, synchronized with the camera’s shutter.

Do you want help choosing the right product?

Talk to an Engineer

What can be detected in real time?

Thanks to the clarity guaranteed by the backlighting, the system can identify:

Micro-holes or tears in cardboard or plastic films.
Closing flap alignment errors.
Presence of waste or residues of material inside the welding area.

Operational reliability

Beyond power, light stability is crucial. Industrial LED lights maintain constant intensity over time, reducing the need to recalibrate machine vision systems. This translates into a production line that runs quickly, safely, and with a near-zero error rate. Real-time defect detection thus becomes an invisible yet foolproof process, ensuring that only perfect packaging reaches the logistics stage.

Products and Technologies

RODER BL3 Series rugged LED backlight illuminators for machine vision high-speed inspection dimensional measurement and edge detection
